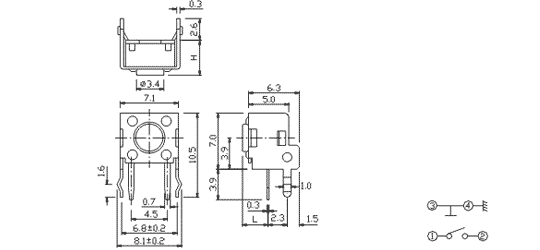

MODEL NO. | H | Knob (L) | MODEL NO. | H | Knob (L) |
| TC-00100-01 | 4.30 | 3.15 | TC-00100(E)-01 | 7.00 | 5.85 | |
| TC-00100(A)-01 | 5.00 | 3.85 | TC-00100(F)-01 | 8.00 | 6.85 | |
| TC-00100(B)-01 | 7.30 | 6.15 | TC-00100(G)-01 | 12.5 | 11.35 | |
| TC-00100(C)-01 | 9.50 | 8.35 | TC-00100(H)-01 | 13.50 | 12.35 | |
| TC-00100(D)-01 | 13.00 | 11.85 |
| Document | |
| DRAWING |
 |
| SPECIFICATIONS | |
| PART NUMBER SYSTEM | |
| RoHS |
| ADDITIONAL MODELS |
 |
 |
|||
| TC-00101-00 | TC-00107-00 |
